HTM63/64 HBN0010 Part C
Showing 1–9 of 10 results
-
Trinidad HTM64 Scrub up trough
Trinidad HTM64 Scrub up trough
Surgeons healthcare scrub up trough in units of 800mm, 1600mm and 2400mm for 1, 2 and 3 persons. Fully compliant to HTM64 and complete with 1½” Bsp outlet and earthing tag. Optional exposed trap cover available. Non standard lengths available on request
-
Fiji HTM64 Slop Hopper
Fiji HTM64 Slop Hopper
The Fiji wall mounted solid and liquid waste disposal unit with continuous flushing rim combined slop hopper, sink and drainer which conforms to HTM64 (DU-H). Overall size 1600mm x 600mm with polished bowl 533mm x 381mm, 200mm deep. Supplied with sound deadening pads and earth tag. Waste, traps and 75mm outlet available on request.
-
Java Slop Hopper
Java Slop Hopper
The Java wall mounted solid and liquid waste disposal unit with continuous flushing rim and hinged bucket grating. Supplied with earth tag. Waste traps and 75mm outlet available on request.
-
Maui Floor Standing Slop Hopper
Maui Floor Standing Slop Hopper
Maui Shrouded sluice with concealed fixings, 600x700x600mm. Back or top entry with Polypropylene P or S trap. 316 grade and hinged grid available on request. Shown with optional Grid.
-
Penang HTM64 plaster sink
Penang HTM64 plaster sink
Penang plaster sinks are designed for use in hospitals and other areas where casting materials are prepared and soaked. Available with single or double drainers, Penang plaster sinks feature a deep drawn, brush finished 533mm x 381mm bowl with a round sump and no overflow. Supplied with removable perforated stainless steel strainer basket, close fitting cover with recessed handle, fitted with sound deadening pads and integral earth tag. Sinktops have plain drainers, anti-drip mouldings and 50mm turndown. Overflow piercing available on request.
-
Jersey HTM64 Sit-on sink tops
Jersey HTM64 Sit-on sink tops
Jersey hospital sinktops comply with HTM64 (Sanitary assemblies) and are used extensively in hospitals, clinics, surgeries, nursing homes and accident units. Jersey sinktops (except 1000mm) have polished bowls measuring 533mm x 381mm, 200mm deep (0.92mm thickness) and drainers (1.2mm thickness) and are supplied with softwood subframe or stainless steel underframes, sound deadening pads and integral earth tag to BS 4190. Sinktops have a standard 50mm turndown for wall installation orfreestanding plus safety return to front edge. Tapholes at 180mm or 200mm centres. Supplied with overflow as standard.
-
Sicily 550 HTM63 sit-on sinktops 550mm projection
Sicily 550 HTM63 sit-on sinktops 550mm projection
Sicily is a range of sit-on hospital sinks to the size and profile as specified by HTM63 (Fitted storage systems). With a 550mm projection, Sicily sinktops have a 55mm deep front edge with a safe bullnose profile and 50mm rear upstand. Sicily sinktops are supplied with pressed drainers, sound deadening pads, integral earth tag and tapholes at 180mm or 200mm centres. Sinktops are supplied with either a wood underframe to facilitate fixing to cabinets or a metal underframe when ordered with optional legs or brackets.
-
Sicily 650 HTM63 sit-on sinktops 650mm projection
Sicily 650 HTM63 sit-on sinktops 650mm projection
Sicily is a range of sit-on hospital sinks to the size and profile as specified by HTM63 (Fitted storage systems). With a 650mm projection, Sicily sinktops have a 55mm deep front edge with a safe bullnose profile and 50mm rear upstand. Sicily sinktops are supplied with pressed drainers, sound deadening pads, integral earth tag and tapholes at 180mm or 200mm centres. Sinktops are supplied with either a wood underframe to facilitate fixing to cabinets or a metal underframe when ordered with optional legs or brackets.HS1065SL63Sicily is a range of sit-on hospital sinks to the size and profile as specified by HTM63 (Fitted storage systems). With a 650mm projection, Sicily sinktops have a 55mm deep front edge with a safe bullnose profile and 50mm rear upstand. Sicily sinktops are supplied with pressed drainers, sound deadening pads, integral earth tag and tapholes at 180mm or 200mm centres. Sinktops are supplied with either a wood underframe to facilitate fixing to cabinets or a metal underframe when ordered with optional legs or brackets.HS1065SL63
-

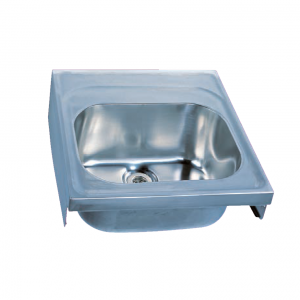

Sark HTM64 Healthcare sink
Sark HTM64 Healthcare sink
Versatile single or double bowl sinks without overflow that can be wall mounted. Bowls measure 508mm x 356mm. Supplied on cantilever brackets with sound deadening pads, rimmed edges with 50mm turndown.
